A Practical Guide to Roller Blind Chains

A roller blind that will not move smoothly is often blamed on the fabric or the bracket. In many cases, the issue is the chain control. This guide to roller blind chains explains what the chain does, how to identify the right replacement and how to keep your blind working properly without replacing the whole thing.

For homeowners, landlords and anyone refreshing a room on a budget, changing a worn chain can be a simple, low-cost fix. The key is matching the replacement to the existing control mechanism rather than choosing a chain by appearance alone.

What a Roller Blind Chain Does

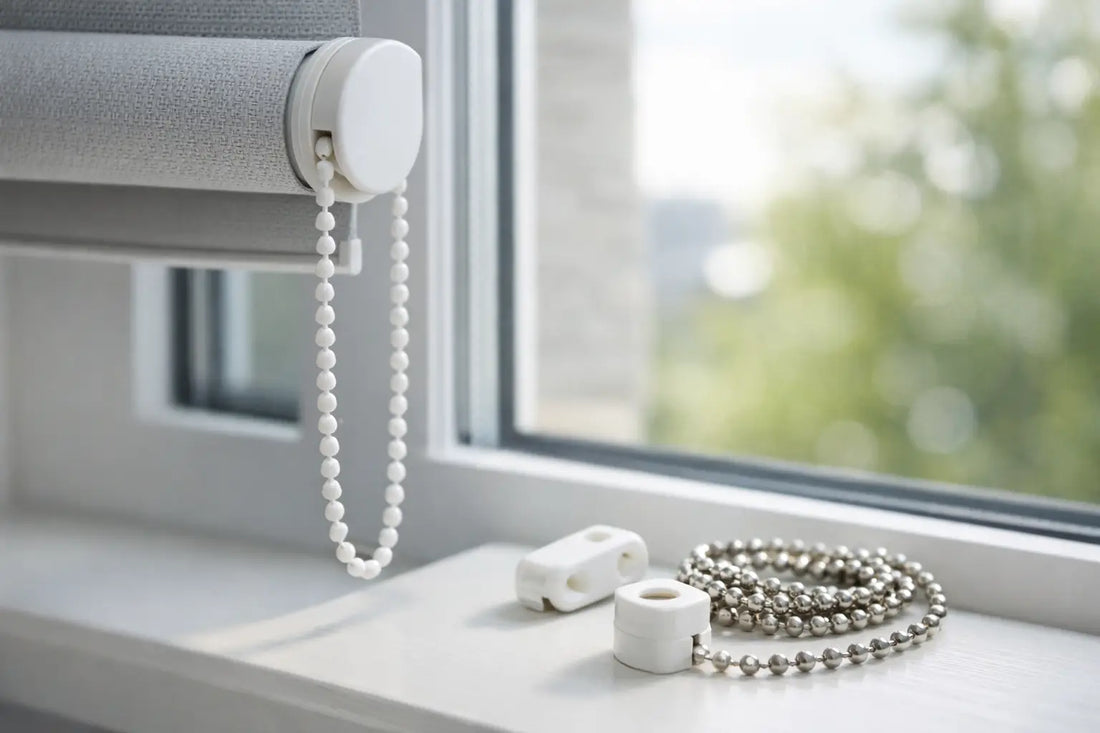

A roller blind chain is the looped control fitted to one end of the roller tube. Pulling one side of the loop turns a small sprocket inside the control unit, which rolls the fabric up or lets it down. It gives you controlled movement and allows the blind to stop at the height you need.

Most chain-operated roller blinds use either plastic or metal chain. Plastic is common, light and economical. Metal chain is often chosen where a more hard-wearing finish is wanted, particularly on blinds used regularly in kitchens, rental properties or busy family rooms. Both can work well when they are the correct size for the sprocket.

The chain itself does not support the weight of the blind. That job is handled by the roller tube, brackets and control mechanism. But if the chain is stretched, damaged or poorly fitted, the blind can become awkward to operate and may stop moving altogether.

Guide to Roller Blind Chains: Getting the Right Size

The most common mistake when buying a replacement roller blind chain is assuming every chain fits every blind. Chain controls come in different bead sizes and pitches. The pitch is the distance from the centre of one bead to the centre of the next. If it does not match the sprocket, the chain may skip, jam or fall away from the mechanism.

Before ordering, remove the old chain if possible and compare it closely. Look at the size of the beads, the spacing between them and the type of connector used to make the loop. A replacement should follow the same pattern as the original chain.

Chain length matters too. A chain loop should be long enough to use comfortably, but it should not trail on the floor. As a practical guide, the bottom of the loop is often positioned around 1.5 metres from the floor. This can vary depending on the window height, who uses the blind and where it is fitted.

For a child-safe installation, the chain must be secured with an appropriate tension device. This keeps the loop taut against the wall or window frame and reduces the risk of a loose loop. Do not leave a chain hanging freely, even if the blind is fitted high up.

Plastic or Metal Chain?

Plastic chain is a sensible choice for many made-to-measure roller blinds. It is tidy, easy to wipe clean and suits everyday use. White plastic chain tends to blend in well with white frames and neutral blinds.

Metal chain can suit contemporary rooms or blinds with darker fittings. It may also be preferable where a chain is handled frequently. However, metal is not automatically better. The right chain is the one that matches your control unit, fits safely and works smoothly. A good-quality plastic chain can last well when used correctly.

Which Side Should the Chain Go On?

The chain can usually be fitted on either the left or right side of a roller blind, depending on the control mechanism and how the blind has been ordered. Choose the side that is easiest to reach and least likely to interfere with furniture, radiators or window handles.

For example, if a blind sits behind a sofa, keep the chain on the accessible side rather than the side hidden against a wall. On a kitchen window, avoid placing it where it will rub against cupboard doors or sit too close to the hob. In bedrooms, consider which side is easiest to use when curtains, bedside tables or wardrobes are in place.

If you are replacing only the chain on an existing blind, the control side will already be set. Changing it from one side to the other is possible on some systems, but it may involve removing the blind, swapping the control and idle end, and checking the fabric roll direction. It is usually easier to keep the same side unless you are replacing more than one component.

How to Replace a Roller Blind Chain

Replacing a damaged chain is normally straightforward, provided that the control mechanism itself is still working. First, take the blind down from its brackets and place it on a clean, flat surface. This prevents the fabric from being marked or creased while you work.

Look at the clutch or control unit at the chain end. On many blinds, the chain can be eased off the sprocket once the connector is opened. If the chain has snapped, remove both loose sections and check that no broken beads are trapped in the control.

Fit the new chain around the sprocket so that each bead sits properly in the grooves. Join the ends using the correct connector to form a continuous loop. Turn the chain slowly by hand before refitting the blind. The sprocket should rotate without jumping, grinding or sticking.

Once the blind is back in its brackets, attach the safety tension device according to its fitting instructions. Test the blind by raising and lowering it several times. If the chain pulls through but the roller does not turn, the fault may be inside the clutch rather than with the chain.

Do not force a stiff chain. Pulling harder can strip the sprocket, crack a plastic control or damage the fabric as it rolls unevenly.

Common Roller Blind Chain Problems

A chain that has come apart at the connector is usually the simplest problem to fix. If the chain is otherwise in good condition, a suitable replacement connector may be all that is needed. Make sure the connector closes fully and does not catch as it passes through the control unit.

If the chain keeps slipping, check for worn beads, an incorrect pitch or a damaged sprocket. A chain that looks similar can still be the wrong fit. Replacing the chain without checking the control can lead to the same problem returning straight away.

A blind that rolls up unevenly is not normally caused by the chain. This is more likely to be a fitting issue, a roller that is not level or fabric that has shifted on the tube. Check that the brackets are secure and level before replacing parts unnecessarily.

If the chain is stiff or noisy, dust and residue may be sitting around the control. Take the blind down and use a dry, soft brush to clear loose dirt from the sprocket area. Avoid spraying oil, polish or heavy lubricant into the mechanism. These products can attract more dust and may affect nearby blind fabric.

Keeping Chain Controls Working Well

Roller blind chains need very little maintenance. Wipe plastic chains with a soft damp cloth and dry them afterwards. Metal chains can be cleaned in the same way, but avoid abrasive cleaners that may dull the finish.

When using the blind, pull the chain down rather than outwards. A sideways pull puts unnecessary pressure on the clutch and brackets. Raise and lower the blind steadily, especially with wider blackout blinds, as these can be heavier than lightweight fabrics.

Check the chain tension device from time to time. It should remain firmly fixed and keep the loop controlled. This is particularly worthwhile in rented homes, children’s rooms and properties where blinds receive frequent use.

If the chain, clutch and brackets are all worn, replacing the full roller blind may be the better value option. A made-to-measure replacement gives you the chance to improve the fit, choose blackout fabric for a bedroom or select a wipe-clean waterproof blind for a bathroom or kitchen. But where the fabric and roller are still in good shape, replacing a chain is a practical way to keep a blind in service.

A smooth-running chain should feel simple: one steady pull up, one steady pull down, and the blind stops where you want it. Match the chain carefully, secure it safely and deal with small signs of wear early, and there is no need for a minor control issue to become a full blind replacement.
